K5V212 Hydraulic Pump Spare Parts
We offer Kawasaki K5V212 hydraulic pump parts, range from K5V80, K5V140, K5V160, K5V200, K5V212. Spare parts include: Rotary Group, Drive Shaft, Support, Swash Plate, Yoke, Thrust Plate, Shoe Plate, Retainer Plate, Set Plate, Ball Guide, Piston Shoe, Pistons, Cylinder Block, Barrel, Valve Plate, Port Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K5V212 DRIVE SHAFT/SHAFT | 1 |
| 2 | K5V212 SUPPORT | 1 |
| 3 | K5V212 SWASH PLATE/YOKE | 1 |
| 4 | K5V212 THRUST PLATE/SHOE PLATE | 1 |
| 5 | K5V212 RETAINER PLATE/SET PLATE | 1 |
| 6 | K5V212 BALL GUIDE | 1 |
| 7 | K5V212 COIL SPRING | 1 |
| 8 | K5V212 PISTON SHOE/PISTONS | 9 |
| 9 | K5V212 WASHER | 1 |
| 10 | K5V212 CYLINDER BLOCK/BARREL | 1 |
| 11 | K5V212 VALVE PLATE/PORT PLATE | 1 |
Features
K5V series: K5V80, K5V140, K5V160, K5V200, K5V212
The K5V series are variable displacement axial piston pumps of swash plate design, suitable for use in mobile applications such as Excavators, Cranes, etc. Various rotary group layouts, tandem type with PTO and parallel type are available to respond to applications. There are high reliability and more than 25 years of experience in the on mobile applications.
| Model | K5V80 | K5V140 | K5V160 | K5V200 | K5V212 | | Displacement (cm3) | 80 | 140 | 160 | 200 | 214 | | Pressure (MPa) | Rated | 34.3 | | Peak | 39.2 | | Max Self Priming Speed (min-1) | 2,460 | 2,160 | 2,000
[2,350]*1 | 1,850
[2,200]*1 | 2,000*1 | | Structure | Single | ◯ | ◯ | ◯ | ◯ | - | | Tandem | ◯ | ◯ | ◯ | ◯ | - | | Parallel | | - | ◯ | ◯ | ◯
| |
Sany Excavator Hydraulic Pump Models
| Sany HYDRAULIC MAIN PUMP ASSY |
| SY200/210/215-6 | K3V112DTP-9TCM |
| SY215-8 | K3V112DTP-9T8L |
| SY215-9 | K3V112DTP-0E11 |
| SY235-8 | K5V140DTP-9T1L |
| SY235-9 | K5V140DTP-0E01 |
| SY285 | K3V140DT-9TCM |
| SY305 | K5V160DTP-9T16 |
| SY335 | K5V200DTH-9N4H |
| SY365 | K5V160DTH1X4R-9T16-BV |
| SY215-10 | K7V125DTP-0E05 |
| SY235/245/265-10 | K7V125DTP-0E09 |
| SY150 | K3V112DP-9NG9 |
| SY200/220 | K5V140DTP-177R-9N19 |
| SY205C | K3V112DTP1Y9R-9P59-AV |
| SY465 | K5V200DTH-0E70 |

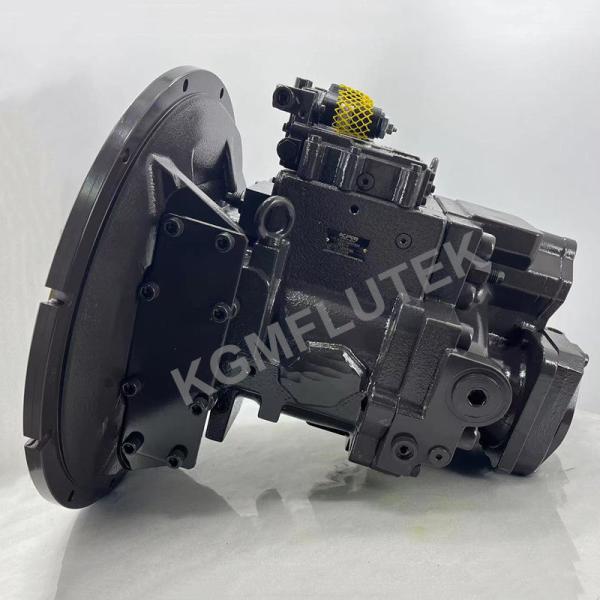

| SY485 | K5V212DPH-0E81 |
| SY280 | K3V140DTP-9NG9 |
| SY75 | K3VL80/B 1ARSMP01 |
| SY465 | K5V200DTH1SXR-0E70-BV |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
